CM602 – High-accuracy single or double-bar sawing machine for short length parts

ADIGE’s fifty years experience in cold saws for tubes and bars ensures higher precision cuts at lower manpower and operating costs.

Cold saw offer higher performances and advantages compared to conventional ones (like band saws, etc.). Consistent accuracy and precision, higher squareness and cutting quality, higher productivity and reduced bar scrap.

All ADIGE cold saw equipment can be supplied with special configurations to meet customer’s need.

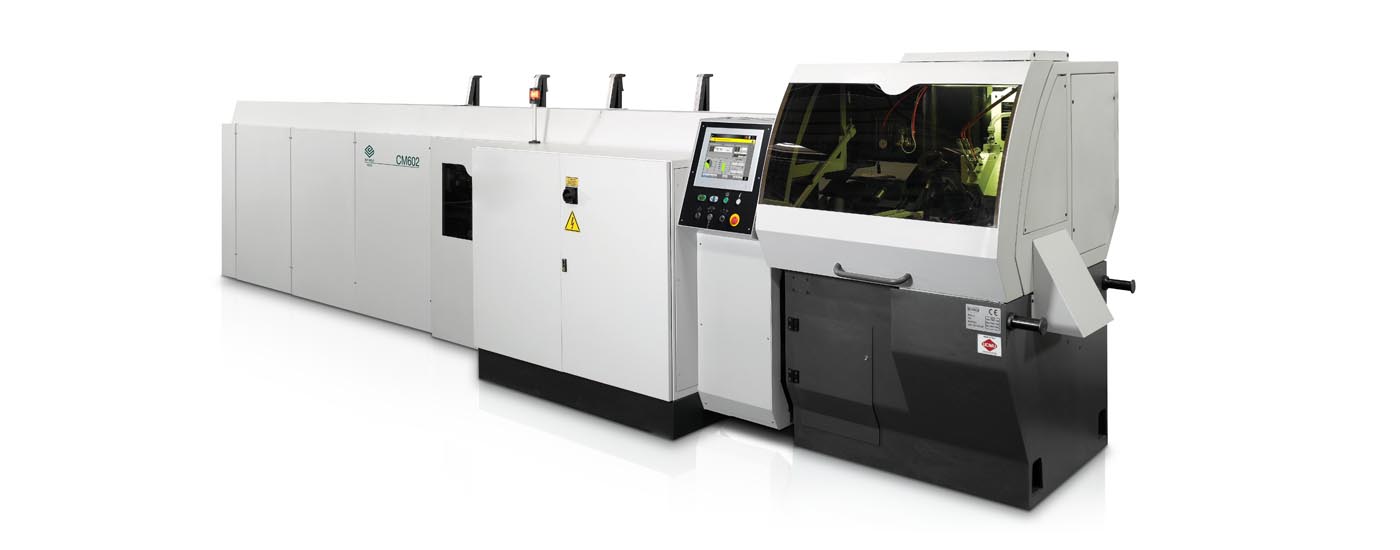

CM602 is an automatic CNC cold sawing machine for medium and short tube and solid bar (single or twin) equipped with CNC control.

All adjustments are fast and centralised. Cutting operations are fully automatic and programmable: loading, pre-loading, cutting and unloading in two alternative positions.

Cutting capacity is up to O.D. 102mm or O.D. 70 x 70mm (90×90 mm for Aluminum) for a maximum length of 500 mm (optionally available up to 1500 mm).

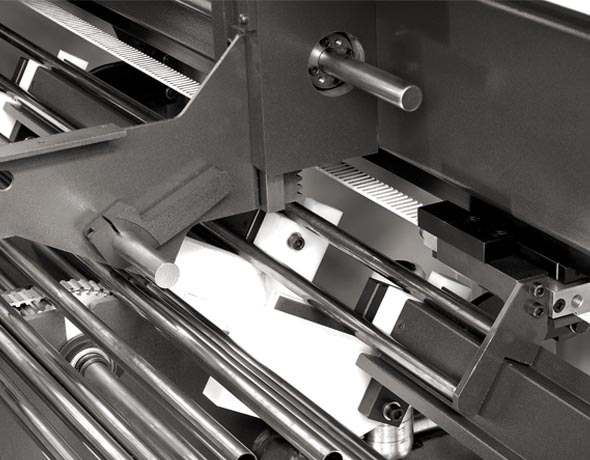

A new advanced loading system continuously controls each bar which is never in a free fall and is deposited in the feed zone without scratches or surface damages. Loaders are available for bars, for bundles of tubes and for inclined planes, in various lengths.

Main features of the CM602 CNC sawing machine:

-blade-guide device

-cutting precision

-high production

-very fast set-up

-automatic management of the technological cutting parameters directly from the controls

-strong cutting head

-reduced scraps

-extremely clean cutting area

-optimal use of blade

-aluminum: adjustable cutting speed up to 4.000 m/min with carbide cutters

-available in twin bar configuration

-For tubes Ø 102 mm max

-For solid bars Ø 65 mm max. (steel alloys)

-For solid bars Ø 102 mm max. (aluminum and brass alloys)

-Cutting length from 5 to 500 mm
