DH2010VGP – All-electric twin head wire bending machine with VGP3D

DH2010VGP is the new automatic, all-electric, double head wire CNC-bending machine with 3D graphical interactive programming software (VGP3D).

Equipped with two bidirectional bending heads (clockwise and counter-clockwise) with variable radius feature, DH2010VGP doubles productivity rates and bends in one cycle even complex wire and/or tube shapes both with coil feeding and straightened cut to length bar.

The machine offers the following advantages:

Very high productivity rate thanks to double head simultaneous bending and to the advanced working cycle generated by the VGP3D

Left/right bending with variable radius facility on the same head and with the same tooling

Automatic unload of the finished parts

Automatic coil feeding and/or straightened cut to length bar not requiring set-up times

Part straightening with in-line device at constant speed

The central clamping unit allows to bend more complex shapes such as closed parts, ends with eyelets, ends that reverse back to the inside of the closed parts, and to control possible flexions of the parts

Ability to bend a “double” part (symmetrical or same) and cut them apart after the bending

Deep and clean chamfering, burr-less, before the bending cycle

Constant repeatability and accuracy

Cheaply to run (power consumption reduced up to 50% compared to electro-hydraulic machines)

Programming is made through the BLM graphical interactive programming software VGP3D, with:

Component feasibility check and generation of the most suitable working cycle (times and costs)

Likely collision risks are highlighted and the most efficient avoidance route selected automatically

by simply inputting the component bend coordinates, the complete bending program is graphically simulated.

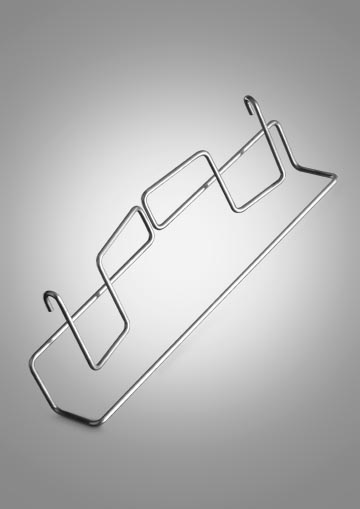

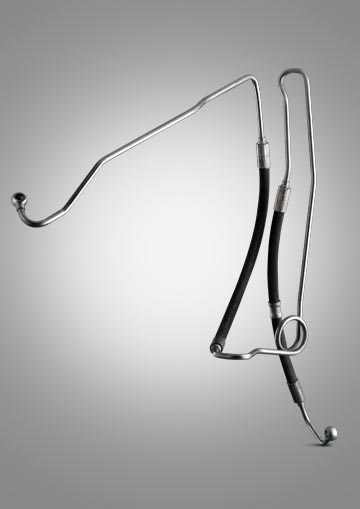

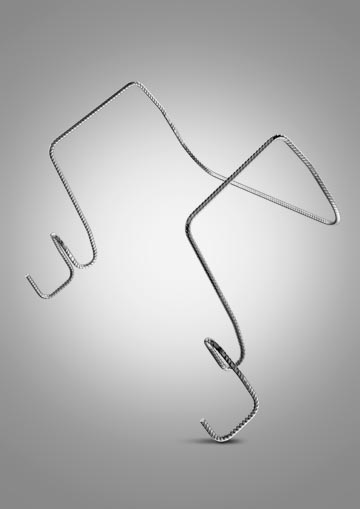

Particularly suitable to work medium and long parts with many bends, symmetrical or asymmetrical or with closed frame structure, mainly used by the following industries: automotive, household appliances, in- and out-door furniture, shop displays and electrical heaters, as well as armoured electrical resistances.

The wire bending machine is available in different versions, with or without coil: wire bending capacity up to 10mm.
